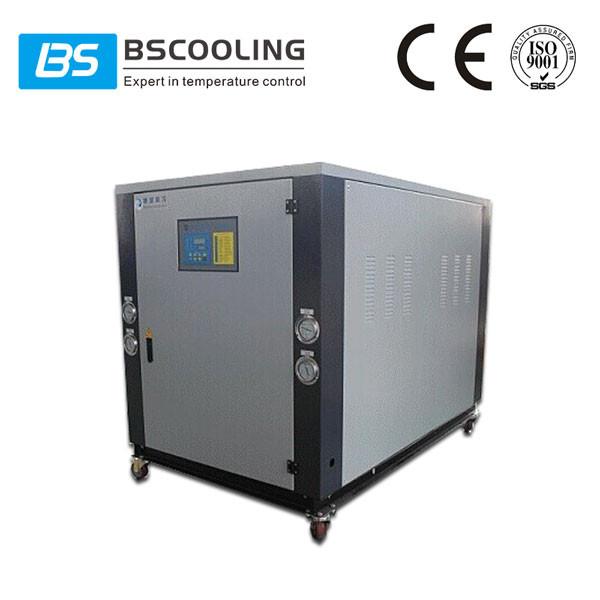

Low temperature water cooled glycol chiller system in -5 degree
celsius
Product Details
Model : BS-WST/WFT
Cooling capacity: 5.3 ~70 KW
Compressor power: 3 ~ 40HP
Temperature Range: -5℃ ~ Room temperature
Application: Brewery, Chemical reaction etc
Working Principle
Feature
- Compressor: Adopt the COPELAND compressors
- Condenser: Adopt shell and tube type seamless thread bronze tube
- Evaporator: Adopt snake-and-tube type (or shell and tube) of
seamless bronze tube.
- High performance of evaporate completely the refrigerant for
chilling water.
- Pump: High-flow pump in smooth operation with minimum noise and no
leakage.
- Control system : Schneider or other famous brand Electric part.
- Adopt the micro computer control system which can be remote
controlled and support to output the alarm message.
- Outlook designing: Novel designed, Rigid construction, low gravity,
no leakage to keep manufacturing plant dry and clean.
- Feature of thermostatic chiller: High precision ±1°C controlled.
Safety device and protection
- ON/OFF- Main power switch
- Non—fuse circuit breaker
- H/L switch
- Power reverse phase protection switch
- Anti-freezing protection
- Compressor overload protection
- Chilling water pump overload protection
- Failure indicator system
- Failure alarm system
- Chilling water by-pass circuit
- Multi-unit delay start control
Specification
| Type [BS- ***] | 03WST | 05WST | 08WST | 10WST | 12WST | 15WDT | 20WDT | 25WDT | 30WTT | 40WFT |
| Refrigeration Capacity | KW | 5.3 | 8.5 | 12.8 | 17.5 | 20.0 | 25.6 | 35.0 | 40 | 51.2 | 70 |
| ×103kcal/hr | 4.6 | 7.3 | 11.0 | 15.1 | 17.2 | 22.0 | 30.1 | 34.4 | 44.0 | 60.2 |
| Consumed Power(KW) | 2.6 | 3.8 | 5.7 | 7.1 | 8.0 | 11.5 | 14.1 | 16.6 | 22.2 | 29.4 |
| Running Amp(A) | 4.9 | 7.9 | 11.1 | 13.0 | 14.9 | 23.0 | 26.2 | 31.4 | 44.2 | 55 |
| Compressor | Non | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 4 |
| Power(KW) | 2.00 | 3.20 | 4.90 | 6.30 | 7.20 | 10.00 | 12.60 | 14.40 | 20.00 | 26.40 |
| Current(A) | 3.76 | 6.80 | 9.60 | 11.50 | 13.40 | 19.80 | 23.00 | 26.80 | 39.60 | 49.00 |
| Refrigerating Fluid | Type | R22(Environmental friendly refrigerant R407C can be choosed) |
| Control Mode | External equalizer thermostaice expansion valve |
| Pump | Type | High efficiency,low noise centrifugal pumps |
| Power(KW) | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
| Current(A) | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 3.2 | 3.2 | 4.6 | 4.6 | 6 |
| HeADL(mH2O) | 22 | 21 | 23 | 20 | 18 | 23 | 21 | 25 | 24 | 24 |
| Condenser | Pipe connection | DN25 | DN40 | DN50 | DN65 |
| Water Flow (M3/h) | 1.4 | 2.1 | 3.2 | 4.2 | 4.8 | 6.2 | 8.2 | 9.4 | 12.3 | 16.6 |
| Evaporator | Pipe connection | DN25 | DN40 | DN50 | DN65 |
Water Flow
(M3/h) | 1 | 1.5 | 2.2 | 3.1 | 3.5 | 4.4 | 6.2 | 7 | 9.5 | 12.4 |
| Tank Volume(L) | 52 | 52 | 120 | 120 | 120 | 120 | Option | Option | Option | Option |
| Out Dimension | Length (mm) | 1080 | 1080 | 1400 | 1400 | 1400 | 1400 | 1600 | 2000 | 2325 | 2370 |
| Width (mm) | 600 | 600 | 995 | 995 | 995 | 995 | 1080 | 1200 | 1350 | 1350 |
| Height (mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1100 | 1200 | 1300 | 1300 |
| Total Weight | kg | 160 | 230 | 320 | 370 | 460 | 660 | 870 | 1080 | 1280 | 1380 |
Remarks:
- The table cooling conditions: chilled ethylene glycol water inlet
temperature 0 ℃, the outlet temperature -5 ℃,Cooling water inlet
temperature 30 ℃, the outlet temperature 35 ℃.
- Power Supply: 3P-380V-50Hz, allowing voltage fluctuation ± 10%,
Allow the voltage difference and ± 2%.
- Specification parameters and dimensions are subject to change due
to product improvement without notice.
Packing & Shipment
Case Show
Certification
Contact Us
Nanjing Bosheng Refrigeration Equipment Co., Ltd
Add: Ankang road,Guli industry park, Jiangning, Nanjing,China
Zip: 211164
Tel: +86-25-52766411 Fax: +86-25-68905249
Mobile: 13770952787
E-mail: sales@bscooling.com
Skype: cole_huo
Web: www.bscooling.com
Company Profile
Nanjing Bosheng Refrigeration Equipment Co.,Ltd specializing in industrial temperature control equipment,
industrial and commercial refrigeration equipment, which relying on
Nanjing university of technology’s advanced technology.
The products are widely used in injection molding, a circuit board,
chemical, electroplating, printing and dyeing, roller, reactor,
plastic and rubber, food, textile, edible fungus, packaging and
pharmaceutical industries.
Workshop
The large NC equipments

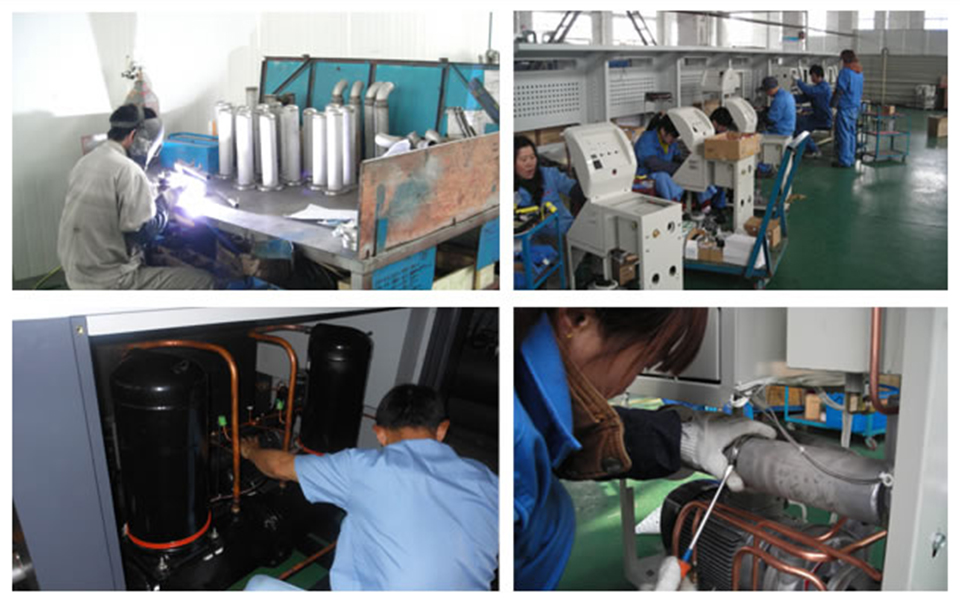

Welding,Electrical installation,Assembly,Machine test
