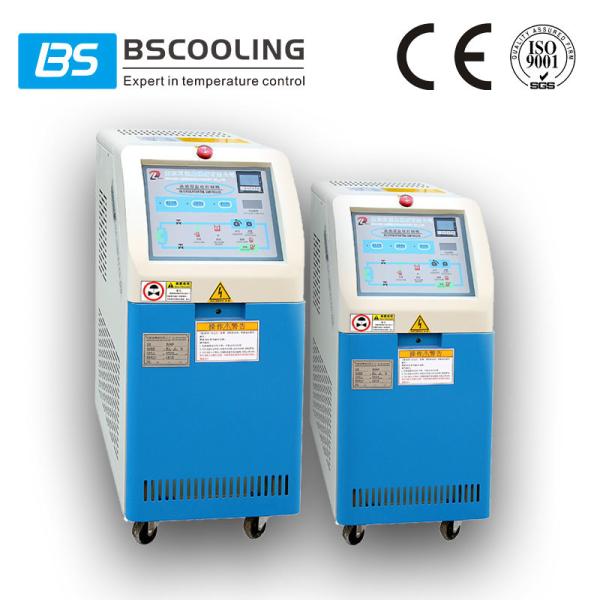

120℃ Hot water temperature controller from china manufacturers for
sale
Product Details
Model : LWM
Heating capacity: 6 ~24 KW
Pump horse power: 0.5 ~ 3HP
Temperature Range: Cooling water~120℃
Application: Plastic machine,Print,Metal,Packing,Food,pharmaceuticals industry,Chemical reaction etc
Feature
- High precision ±1°C controlled
- Return water temperature display
- Explosion proof design for pipeline
- Stainless steel pipeline reduce resistance and rusty
- Omron, Fuji, LG, Siemens, Schneider brand electrical equipment
- Microcomputer control system
- Automatic exhaust function for start-up
- Heating power switching function
- Improved safe protection and fault indication, easy operation for
maintenance
- Isolated type electric control box prolong the service life of
electric appliance
- By-pass pressure relief loop
Safety device and protection
- Abnormal temperature protection
- Reverse phase protection of power supply
- Short circuit protection
- Pump overload protection
- Water shortage protection
- Abnormal heating protection
- Pipe clogging protection
- Abnormal pressure stops heating protection
- Automatic exhaust protection
Specification
120℃ Hot water temperature controller
| Model | Unit | LWM-05 | LWM-10 | LMW-20 | LMW-30 | LWMD-10 |
| Temp. control range | ºC | Inlet water temperature +15 ~ 120ºC |
| Temp. control accuracy | | PID±1ºC |
| Power supply | | AC3Φ380V 50HZ 3P+E(5M) |
| Heat transfer medium | | Water |
| Cooling methad | | Direct cooling |
| Heating capacity | KW | 6 | 9 | 9/12 | 18/24 | 9+9 |
| Pump power | HP | 0.5 | 1 | 2 | 3 | 1+1 |
| Max.pump flow | L/min | 95 | 165 | 236 | 315 | 165+165 |
| Max.pump pressure | Bar | 2 | 2.2 | 2.4 | 3 | 2.2 |
| Total power | KW | 7 | 10 | 11/14 | 21/27 | 20 |
| Cooling water pipe | Inch | 1/2 | 1/2 | 1/2 | 1/2 | ** |
| Circulation water pipe | Inch | 3/8*2 | 3/8*4 | 1 | 1 | 3/4*2 |
| Dimension | L | mm | 760 | 800 | 800 | 930 | 800 |
| W | mm | 280 | 325 | 325 | 360 | 650 |
| H | mm | 590 | 590 | 650 | 850 | 650 |
| Weight | kg | 62 | 65 | 75 | 90 | 120 |
Remark:
- Power Supply: 3P-380V-50Hz, allowing voltage fluctuation ± 10%,
Allow the voltage difference and ± 2%;
- Specification parameters and dimensions are subject to change due
to product improvement without notice.
